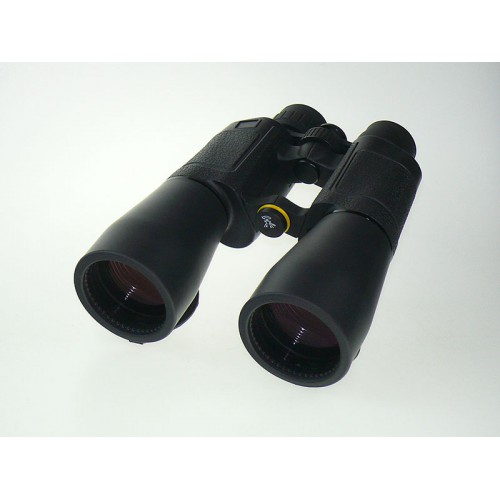

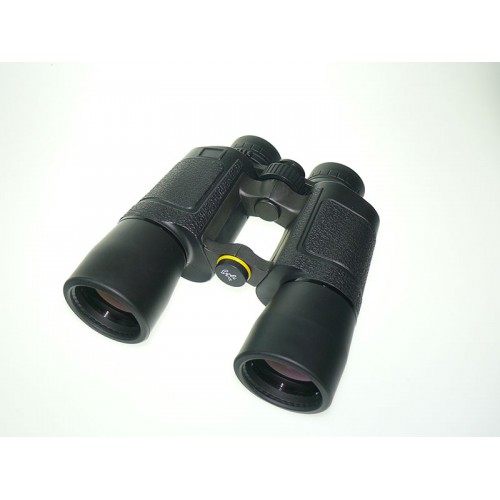

DWSL Series
– Open Hinge design porro prism binocular
– BaK-4 prism
– Rubberied metal body construction
– Long Eye Relief Optics with twist-up eyecup
– Fogproof with nitrogen filled and waterproof
This series available with 0842, 1050 & 1260
| POWER | 8x |
| OBJ.LENS DIA. | φ42mm |
| TYPE OF PRISM | Porro / Bak4 |
| NUMBER OF LENS | 6 pieces in 4 groups |
| LENS COATING | FBMC |
| FOCUS SYSTEM | Center |
| FOCUSING LENS | Eyepieces |
| EXIT PUPIL DIAMETER | φ4.9mm |
| FIELD OF VIEW | 7°, 369ft., 123m |
| EYE RELIEF | 19.8mm |
| MIN. FOCAL LENGTH | 6m |
| TWILIGHT INDEX | 17.7 |
| RESOLUTION | ≤6.2" |
| RELATIVE BRIGHTNESS | 24 |
| DIOPTER COMP. | -4 to +8 dpt |
| INTERPUPILLARY DIST. | 56-70 |
| WEATHER PROOF | YES |
| WATER PROOF | 0.3m / 10 min |
| NITROGEN FILLED | YES |
| FOLDING EYECUPS | YES |
| POUCH | YES |
| STRAP | YES |
| CLEANING CLOTH | YES |
| SILICA GEL | YES |
| UNIT DIMENSION | 165x175x65 mm |
| UNIT WEIGHT | 940g |
| POWER | 10x |
| OBJ.LENS DIA. | φ50mm |
| TYPE OF PRISM | Porro / Bak4 |
| NUMBER OF LENS | 6 pieces in 4 groups |
| LENS COATING | FBMC |
| FOCUS SYSTEM | Center |
| FOCUSING LENS | Eyepieces |
| EXIT PUPIL DIAMETER | φ4.9mm |
| FIELD OF VIEW | 5.6°, 294ft., 98m |
| EYE RELIEF | 19.3mm |
| MIN. FOCAL LENGTH | 9m |
| TWILIGHT INDEX | 22.1 |
| RESOLUTION | ≤5.2" |
| RELATIVE BRIGHTNESS | 24 |
| DIOPTER COMP. | -4 to +8 dpt |
| INTERPUPILLARY DIST. | 56-70 |
| WEATHER PROOF | YES |
| WATER PROOF | 0.3m / 10 min |
| NITROGEN FILLED | YES |
| FOLDING EYECUPS | YES |
| POUCH | YES |
| STRAP | YES |
| CLEANING CLOTH | YES |
| SILICA GEL | YES |
| UNIT DIMENSION | 182x205x65mm |
| UNIT WEIGHT | 1050g |
| POWER | 12x |
| OBJ.LENS DIA. | φ60mm |
| TYPE OF PRISM | Porro / Bak4 |
| NUMBER OF LENS | 6 pieces in 4 groups |
| LENS COATING | FBMC |
| FOCUS SYSTEM | Center |
| FOCUSING LENS | Eyepieces |
| EXIT PUPIL DIAMETER | φ4.9mm |
| FIELD OF VIEW | 4.7°, 246ft., 82m |
| EYE RELIEF | 19mm |
| MIN. FOCAL LENGTH | 18m |
| TWILIGHT INDEX | 26.6 |
| RESOLUTION | ≤4.35" |
| RELATIVE BRIGHTNESS | 24 |
| DIOPTER COMP. | -4 to +8 dpt |
| INTERPUPILLARY DIST. | 56-70 |
| WEATHER PROOF | YES |
| WATER PROOF | 0.3m / 10 min |
| NITROGEN FILLED | YES |
| FOLDING EYECUPS | YES |
| POUCH | YES |
| STRAP | YES |
| CLEANING CLOTH | YES |
| SILICA GEL | YES |
| UNIT DIMENSION | 235x190x75mm |
| UNIT WEIGHT | 1330g |
– Open Hinge design porro prism binocular
– BaK-4 prism
– Rubberied metal body construction
– Long Eye Relief Optics with twist-up eyecup
– Fogproof with nitrogen filled and waterproof
This series available with 0842, 1050 & 1260
| POWER | 8x |
| OBJ.LENS DIA. | φ42mm |
| TYPE OF PRISM | Porro / Bak4 |
| NUMBER OF LENS | 6 pieces in 4 groups |
| LENS COATING | FBMC |
| FOCUS SYSTEM | Center |
| FOCUSING LENS | Eyepieces |
| EXIT PUPIL DIAMETER | φ4.9mm |
| FIELD OF VIEW | 7°, 369ft., 123m |
| EYE RELIEF | 19.8mm |
| MIN. FOCAL LENGTH | 6m |
| TWILIGHT INDEX | 17.7 |
| RESOLUTION | ≤6.2" |
| RELATIVE BRIGHTNESS | 24 |
| DIOPTER COMP. | -4 to +8 dpt |
| INTERPUPILLARY DIST. | 56-70 |
| WEATHER PROOF | YES |
| WATER PROOF | 0.3m / 10 min |
| NITROGEN FILLED | YES |
| FOLDING EYECUPS | YES |
| POUCH | YES |
| STRAP | YES |
| CLEANING CLOTH | YES |
| SILICA GEL | YES |
| UNIT DIMENSION | 165x175x65 mm |
| UNIT WEIGHT | 940g |
| POWER | 10x |
| OBJ.LENS DIA. | φ50mm |
| TYPE OF PRISM | Porro / Bak4 |
| NUMBER OF LENS | 6 pieces in 4 groups |
| LENS COATING | FBMC |
| FOCUS SYSTEM | Center |
| FOCUSING LENS | Eyepieces |
| EXIT PUPIL DIAMETER | φ4.9mm |
| FIELD OF VIEW | 5.6°, 294ft., 98m |
| EYE RELIEF | 19.3mm |
| MIN. FOCAL LENGTH | 9m |
| TWILIGHT INDEX | 22.1 |
| RESOLUTION | ≤5.2" |
| RELATIVE BRIGHTNESS | 24 |
| DIOPTER COMP. | -4 to +8 dpt |
| INTERPUPILLARY DIST. | 56-70 |
| WEATHER PROOF | YES |
| WATER PROOF | 0.3m / 10 min |
| NITROGEN FILLED | YES |
| FOLDING EYECUPS | YES |
| POUCH | YES |
| STRAP | YES |
| CLEANING CLOTH | YES |
| SILICA GEL | YES |
| UNIT DIMENSION | 182x205x65mm |
| UNIT WEIGHT | 1050g |
| POWER | 12x |
| OBJ.LENS DIA. | φ60mm |
| TYPE OF PRISM | Porro / Bak4 |
| NUMBER OF LENS | 6 pieces in 4 groups |
| LENS COATING | FBMC |
| FOCUS SYSTEM | Center |
| FOCUSING LENS | Eyepieces |
| EXIT PUPIL DIAMETER | φ4.9mm |
| FIELD OF VIEW | 4.7°, 246ft., 82m |
| EYE RELIEF | 19mm |
| MIN. FOCAL LENGTH | 18m |
| TWILIGHT INDEX | 26.6 |
| RESOLUTION | ≤4.35" |
| RELATIVE BRIGHTNESS | 24 |
| DIOPTER COMP. | -4 to +8 dpt |
| INTERPUPILLARY DIST. | 56-70 |
| WEATHER PROOF | YES |
| WATER PROOF | 0.3m / 10 min |
| NITROGEN FILLED | YES |
| FOLDING EYECUPS | YES |
| POUCH | YES |
| STRAP | YES |
| CLEANING CLOTH | YES |
| SILICA GEL | YES |
| UNIT DIMENSION | 235x190x75mm |
| UNIT WEIGHT | 1330g |
